GTL has been providing materials characterization solutions since our company inception, working within the electrochemistry and general UV-VIS spectroscopy fields. As modern instrumentation has developed to be more capable, more affordable and in many cases more compact, this market segment has allowed us to expand into a broad general field of analytical solutions deploying many of our instruments more as sensors and OEM products than we had thought was possible.
More than any of the fields in which we work, we encourage you to discuss your application with us to best determine how we may help.

Get in touch to discuss sales & custom solutions

Contact Us

ADMIRAL INSTRUMENTS

Making The Next Generation of Electrochemistry Instruments Truly Accessible Worldwide

Admiral Instruments’ mission is to make the next generation of electrochemistry instruments truly accessible by putting research level performance in compact bench friendly workstations within the reach of any budget. Gamble Technologies has been providing electrochemical solutions from providers of legacy instrumentation since its company inception and in their view Admiral’s innovation in instrumentation, intuitive software and ultimate affordability offer the highest value in the electrochemical instrumentation marketplace.

  • Supported Measurement Techniques

    • Battery Capacity
    • Charge / Discharge (Constant C / Constant V)
    • Charge / Discharge (Constant R / Constant P)
    • Chronoamperometry
    • Chronopotentiometry
    • Cyclic Voltammetry (CV)
    • Electrochemical Impedance Spectroscopy (both PEIS and GEIS)
    • Galvanostatic Intermittent Titration Technique (GITT)
    • Linear Sweep Voltammetry (LSV)
    • Mott-Schottky (single-frequency and multi-frequency)
    • Open Circuit Potential Monitoring
    • Potentiostatic Intermittent Titration Technique (PITT)
    • Square Wave Voltammetry
    • Staircase Voltammetr

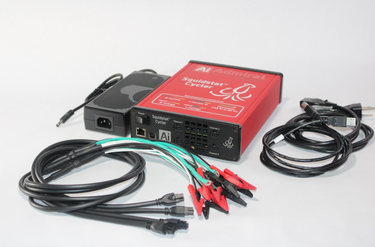

  • Squidstsat Cycler

    Features & Benefits

    • Every channel is equipped with Electrochemical Impedance Spectroscopy (EIS) up to 10 kHz
    • Every channel can run 2, 3, or 4-electrode measurements, with temperature sensor built in
    • Customizable up to a 0-60V voltage scan range and +/-60A maximum current range per channel
    • Available in a handheld 4-channel configuration, or rack-mounted for higher channel counts
    • Any number of channels can be stacked together in parallel to go as high as 1000A
    • Operated by our modern Squidstat User Interface with drag-and-drop experiment builder options

Squidstat Workstations

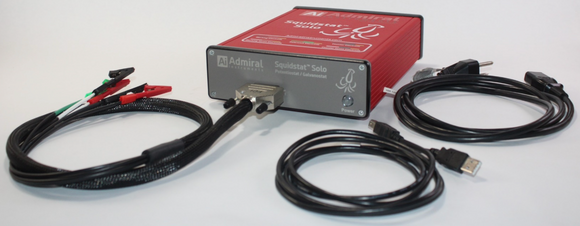

  • Solo

    • Max Current: ±100 mA
    • Best Current Accuracy: 1 nA
    • Voltage Scan Range: ±10 V
    • Channels Per Unit: 1
    • Ultra compact
    • DC Measurements Only

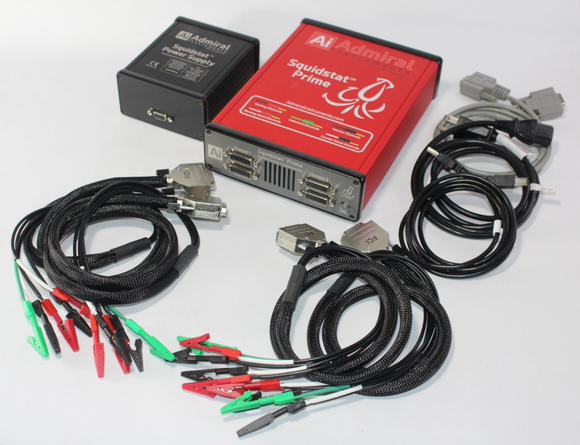

  • Prime

    • ±250 mA per channel
    • Best Current Accuracy: 1 nA
    • Voltage Scan Range: ±10 V
    • Channels Per Unit: 4
    • Ultra compact
    • DC Measurements Only

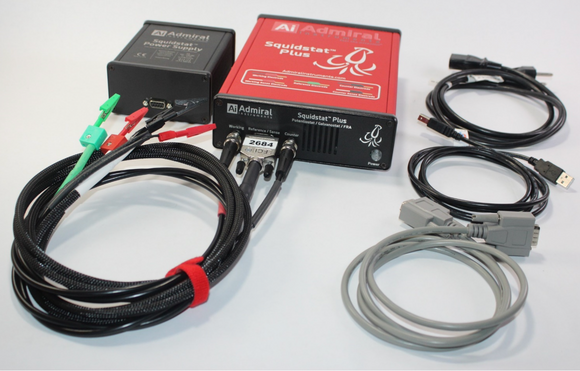

  • Plus

    • EIS Frequency Range: Up to 2 MHz
    • Max Current: ±1 A
    • Best Current Accuracy: 1 nA
    • Voltage Scan Range: ±10 V
    • Ultra compact
    • Channels Per Unit: 1

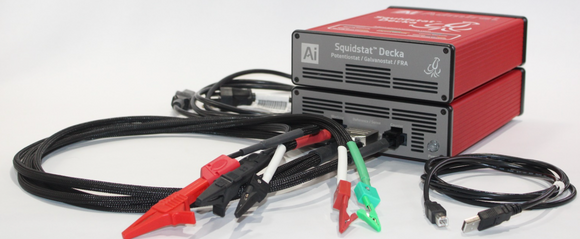

  • Boosted Single Channel Squidstats

    • All with EIS up to 1MHz
    • Penta, current to +/-5A; Current accuracy 1nA; Compliance +/-10V
    • Decka, current to +/-10A; Current accuracy 1nA; Compliance +/-10V
    • Venta, current to +/-20A, Current accuracy 1nA; Compliance +/-6V

Software

All Squidstat instruments are powered by Admiral’s modern & easy-to-use software for data acquisition and analysis.

No Licenses. No Restrictions. Free Updates Forever. Windows, Mac and Linux.

MicruX

MicruX provides smart microfluidic & electrochemical solutions from their innovative microfluidic platforms, electrochemical sensors and portable analytical instruments based on Lab-on-a-Chip (LOC) Technologies for research & industrial activities.

Contact us to learn more about this innovative and growing company’s product portfolio.

Micrux Catalogue PDF

Redox

Redox provides the widest range of electrochemical cells in the market with the majority made of corrosion resistant robust PEEK. Their catalog covers every current Echem application but if a new application comes up their engineers are more than happy to discuss a custom cell.

RAMAN SPECTROSCOPY

GTL has been providing RAMAN systems for over 20 years and with the maturation of the technique now provides systems that are so affordable they could be considered as an enabling technology. Whether you are doing laboratory or field based RAMAN spectroscopy, we want to hear from you to discuss how we may help.

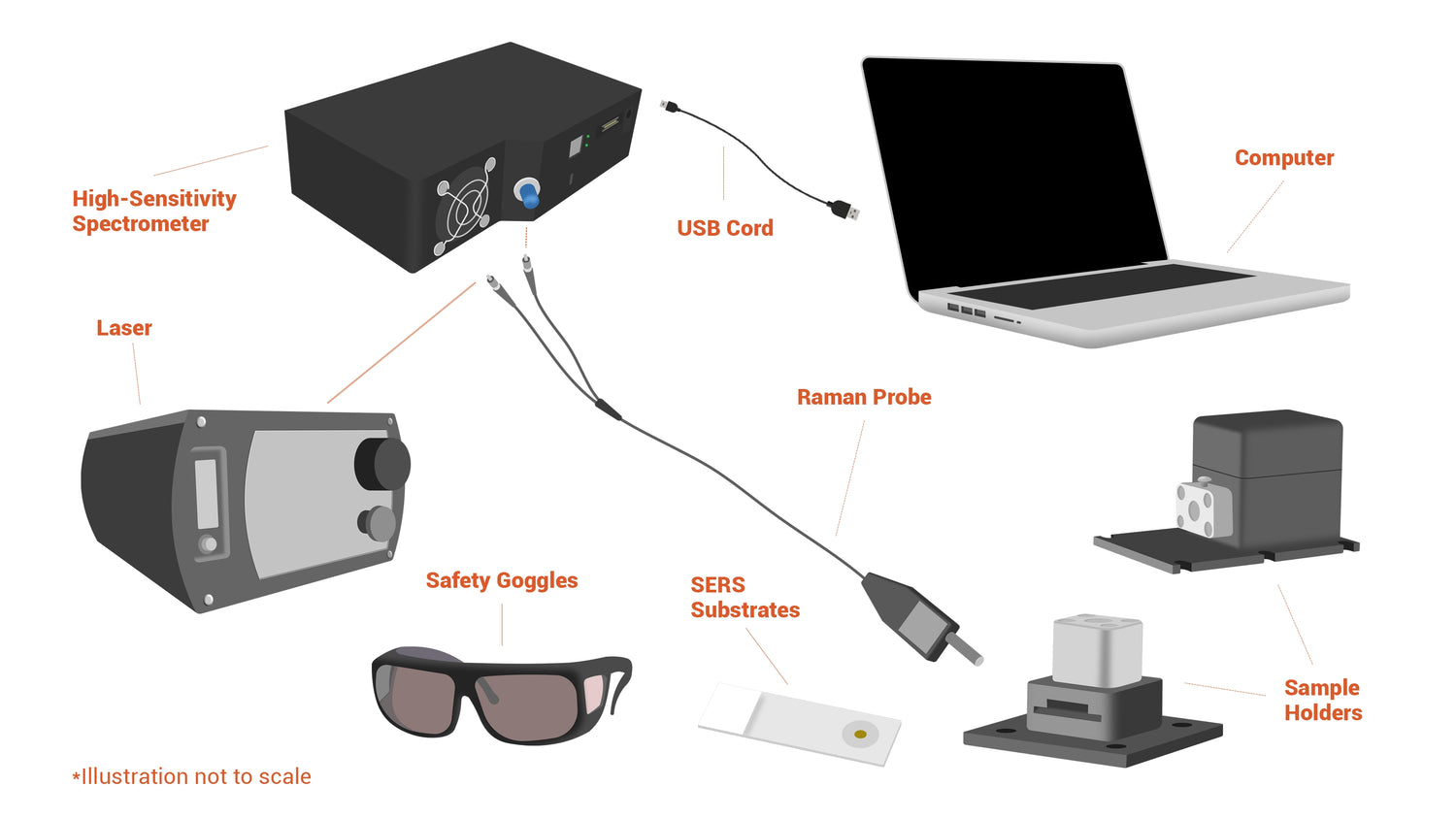

Ocean’s first RAMAN system was based on the ubiquitous USB2000 spectrometer providing the basis for the new RAMAN configurations offered today.  If a compact laboratory system is needed, we are confident we can provide you with a very affordable and highly capable solution.

✕

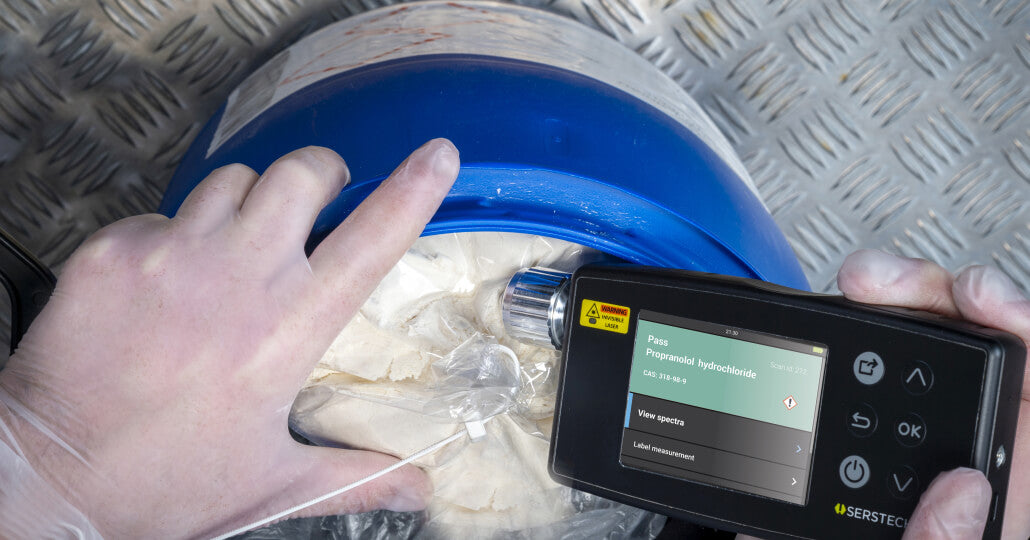

Swedish maker Serstech provides GTL with a key suite of instruments for its CBRNE portfolio. However, the same instrument is configured to also do materials analysis featuring true hand held and rapid determination of unknowns.

Quick and easy verification of chemicals and materials saves time and money for users in various industries, including chemical production, laboratory work and environmental inspection. The identification can be done without opening plastic bags and other containers, which removes the need for cleanrooms and allows for the verification to be done without disrupting ongoing production and other activities.

The Serstech Solution is designed to be easy and quick to use, with minimal waiting times and without the need for operator training. The low weight and the small form factor make Serstech’s instruments truly handheld with up to 12 hours battery life allowing use in a full workday without recharging.

The instruments are 21 CFR part 11 compliant, with a complete audit trail and data integrity you can trust. Serstech’s solution is your perfect companion for inventory management and goods inspection.

Serstech’s instruments and software support your existing processes and can be customized in several ways. One is the report templates that can be defined by the admin and then can be filled out and signed by the user. Another is the flexible user rights management, which allows the administrator to set exactly what each user is allowed to do and edit in the system.

Consult with GTL to discuss how we may best address your at site measurement needs.

✕

The world's only Raman system with remote probes capable of automatic focus-tracking.

The Virsa fibre-optic-coupled Raman analyser enables you to take your spectroscopic analysis away from the confines of the laboratory microscope to new samples and environments.

Using LiveTrack™ focus-tracking technology and Monitor™ software, the Virsa system can easily perform real-time analysis on samples that have irregular surfaces, are changing shape as they undergo phase changes, and that move, such as those on production lines.

Capabilities

  • High performance portable fiber coupled Raman system
  • High spatial resolution x/y <1 µm, z <2 µm
  • Live white light sample viewing for accurate sample targeting
  • Motorized x/y/z stack that enables accurate objective positioning for single point or mapping purposes
  • Work with objective lens pointing downwards or horizontally
✕
